ADS® NYLOPLAST CATCH BASINS, GRATES & DRAINAGE ACCESSORIES
ADS Surface Drainage Products – Durable and water-tight delivered ready to install.
ADS Catch Basin Applications
ADS Catch Basins are used as a collection point where two or more drain lines converge. Basins can provide a transition between different sizes and types of pipe, and can also change the elevation or direction of the pipe.

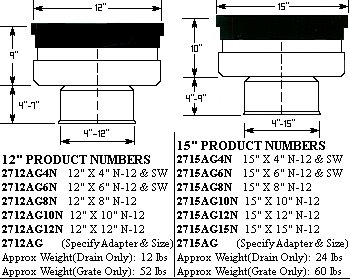

Inline Drains are typically used at the beginning of a drain line, or as a means to enter a line through a tee and riser pipe.
Rubber Gasket Installation Guidelines
- Cut pipe in valley of corrugation.
- Place gasket in first full corrugation valley.
- Gasket fin should point away from end of pipe; white line on fin faces towards end of pipe.
- Apply pipe lubricant or soapy water around gasket after it is in place.

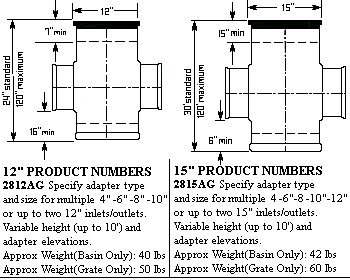

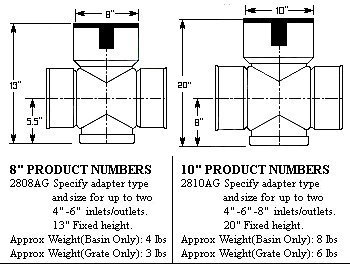

NYLOPLAST Standard Drain Basins – 8″, 10″, 12″ and 15″
Cast iron grates available:
- Perforated
- Solid
- Locking
- Domed
Grates for 12″ and 15″ are square and hinged to base.
Cast iron grates available:
- Perforated
- Solid
- Locking
- Pedestrian
Cast iron grates available:
- Perforated
- Solid
- Locking
- Domed
Cast iron grates available:
- Perforated
- Solid
- Locking
- Pedestrian
Grate Specifications for ADS Inline Drains & ADS Drain Basins
Solid grates and locking styles are available in all sizes for an additional charge.
Content provided by Advanced Drainage Systems, Inc.
